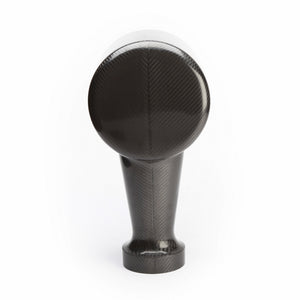

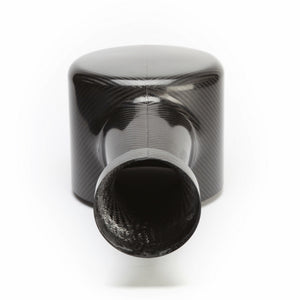

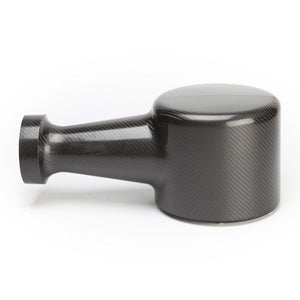

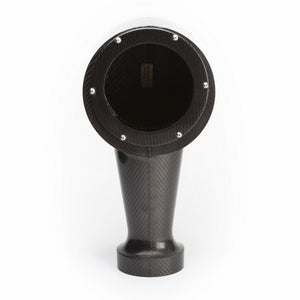

AB80 Carbon Airbox
Part Number: AB80
Our original carbon air box designed for Honda UK for their BTCC program. Our larger diameter cylinder style filters fit this air box. If you have the space and want the ultimate carbon air box then this is what you need. Any of our Large Cone filters will fit inside this airbox.
Measurements
A - (Length) Measurement taken from airbox inlet (C), to filter spinning outlet (D). Rebated ARAB Spinning reduces length by approx. 20mm
B - (Width) Measurement taken at widest point of filter lid spinning.
Do not measure from screw to screw.
C - Inlet (Dirty air in) measurement taken as internal diameter.
See table for duct sizing guide.
D - Outlet (Clean air out) Compatible with JC60 Full Cone
All dimensions are in (mm)
| Part No. | A (Length) | B (Width) | C (Inlet) | D (Outlet ID / OD) | BHP | |
|---|---|---|---|---|---|---|
| AB80 w/ JC60/80C | 443 | 240 | 120 | 80 / 83 | 450 | |
| AB80 w/ JC60/86C | 443 | 238 | 120 | 86 / 89 | 480 | |
| AB80 w/ JC60/93C | 443 | 235 | 120 | 93 / 96 | 500 | |
| AB80 w/ JC60/99C | 443 | 235 | 120 | 99 / 102 | 520 | |
| AB80 w/ JC60/114C | 443 | 230 | 120 | 114 / 117 | 530 | |
| AB80 w/ JC60/124C | 443 | 225 | 120 | 124 / 127 | 540 |
