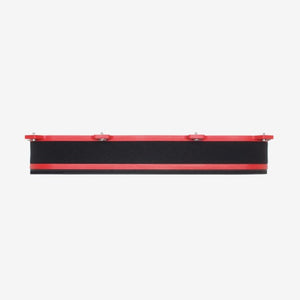

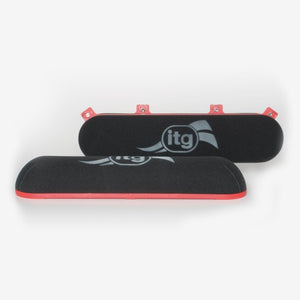

JC100 Multi Carburettor Filter
Part Number: JC100
The JC100 is popular on many historic cars including Jaguars, Austin Healeys and Datsuns. It benefits from all the advantages of the rest of the megaflow range.
Measurements
A - (Internal Height mm) Distance from face of baseplate and the inside face of the filter
B - (Width mm) External width of the filter not including the lug
C - (Length mm) External length of the filter.
D - (Overall Height mm) Overall external height of the filter
| Part No. | A (Internal height) | B (Width) | C (Length) | D (Overall height) |
|---|---|---|---|---|
| JC100/40 | 40 | 142 | 608 | 65 |
| JC100/65 | 65 | 142 | 608 | 90 |
| JC100/100 | 100 | 142 | 608 | 125 |
| JC100/125 | 125 | 142 | 608 | 150 |
| JC100/25 | 25 | 142 | 608 | 50 |
