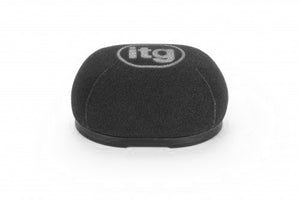

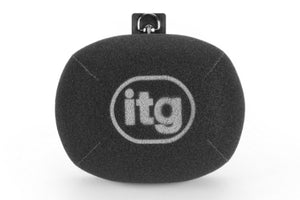

JC20 Sausage Single Carburettor Filter (Black Framed)
Part Number: JC20/SB
The sausage version of the JC20 is useful where space is limited.
Black Framed Version of our JC20/S Megaflow Filters.
Measurements
A - (Internal Height mm) Distance from face of baseplate and the inside face of the filter
B - (Width mm) External width of the filter not including the lug
C - (Length mm) External length of the filter.
D - (Overall Height mm) Overall external height of the filter
| Part No. | A (Internal height) | B (Width) | C (Length - bottom) | D (Overall height) |
|---|---|---|---|---|
| JC20/S/25B | 25 | 148 | 186 | 50 |
| JC20/S/40B | 40 | 148 | 186 | 65 |
| JC20/S/65B | 65 | 148 | 186 | 90 |
| JC20/S/100B | 100 | 148 | 186 | 125 |
| JC20/S/125B | 125 | 148 | 186 | 150 |
