JC20 Sausage Single Carburettor Filter
Part Number: JC20/S
The sausage version of the JC20 is useful where space is limited.
Measurements
A - (Internal Height mm) Distance from face of baseplate and the inside face of the filter
B - (Width mm) External width of the filter not including the lug
C - (Length mm) External length of the filter.
D - (Overall Height mm) Overall external height of the filter
| Part No. | A (Internal height) | B (Width) | C (Length - bottom) | D (Overall height) |
|---|---|---|---|---|
| JC20/S/25 | 25 | 148 | 186 | 50 |

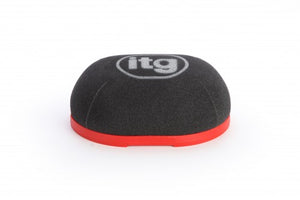

| JC20/S/40 | 40 | 148 | 186 | 65 |

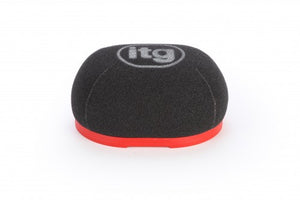

| JC20/S/65 | 65 | 148 | 186 | 90 |

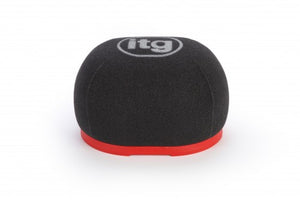

| JC20/S/100 | 100 | 148 | 186 | 125 |
| JC20/S/125 | 125 | 148 | 186 | 150 |
