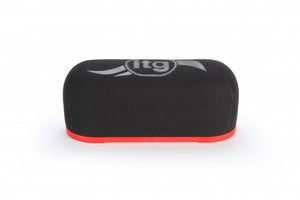

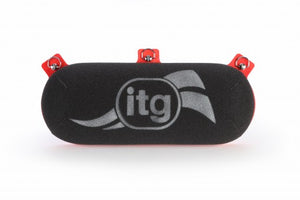

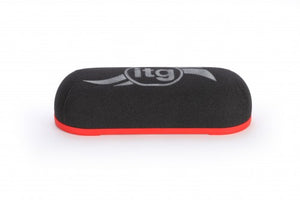

JC40 Small Sausage Twin Carburettor Filter
Part Number: JC40/S
This domed version of the popular JC40 is useful where space is restricted.
Measurements
A - (Internal Height mm) Distance from face of baseplate and the inside face of the filter
B - (Width mm) External width of the filter not including the lug
C - (Length mm) External length of the filter.
D - (Overall Height mm) Overall external height of the filter
| Part No. | A (Internal height) | B (Width) | C (Length) | D (Overall height) |
|---|---|---|---|---|
| JC40/S/25 | 25 | 142 | 379 | 50 |
| JC40/S/40 | 40 | 142 | 379 | 65 |
| JC40/S/65 | 65 | 142 | 379 | 90 |
| JC40/S/100 | 100 | 142 | 379 | 125 |
| JC40/S/125 | 125 | 142 | 379 | 150 |
