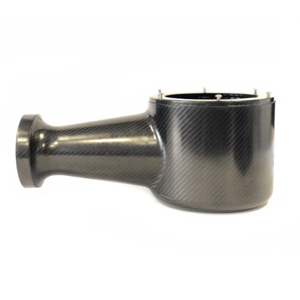

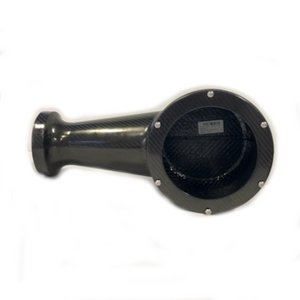

AB80S Carbon Airbox
Part Number: AB80S
The AB80S is a smaller version of our AB80 Carbon Airbox - used where a full sized AB80 cannot be used, but a large filter is still required for high power outputs.
Filters for the AB80 airbox are made to special order to the outer diameters listed in the size table below.
Measurements
A - (Length) Measurement taken from airbox inlet (C), to filter spinning outlet (D). Rebated ARAB Spinning reduces length by approx. 20mm
B - (Width) Measurement taken at widest point of filter lid spinning.
Do not measure from screw to screw.
C - Inlet (Dirty air in) measurement taken as internal diameter.
See table for duct sizing guide.
D - Outlet (Clean air out)
All dimensions are in (mm)
| Part No. | A (Length) | B (Width) | C (Inlet) | D (Outlet ID / OD) |
|---|---|---|---|---|
| AB80S/80 | 407 | 219 | 120 | 80 / 83 |
| AB80S/86 | 407 | 217 | 120 | 86 / 89 |
| AB80S/93 | 407 | 214 | 120 | 93 / 96 |
| AB80S/99 | 407 | 214 | 120 | 99 / 102 |
| AB80S/114 | 407 | 209 | 120 | 114 / 117 |
| AB80S/124 | 407 | 204 | 120 | 124 / 127 |
