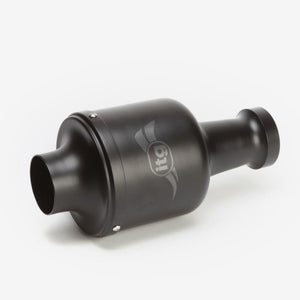

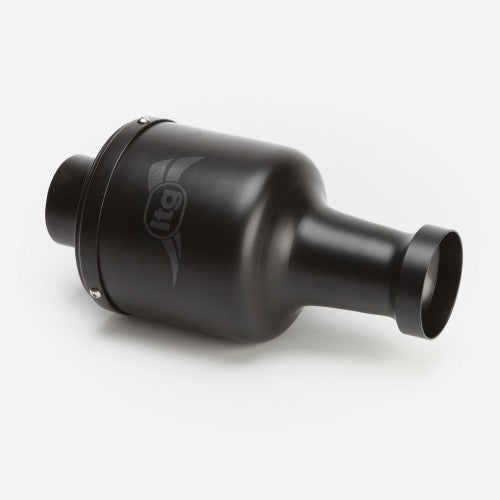

ARAB54 Airbox
ARAB54 Airbox

ARAB54 Airbox

Part Number: ARAB54

This 'baby' air box can be used on lower output applications where space is not at a premium but you still want to try and ensure cool air gets to your filter.

If you can fit one of the larger diameter air boxes on your application we would recommend it, as the filtration surface area on this filter is relatively low.

Measurements

A - (Length) Measurement taken from airbox inlet (C), to filter spinning outlet (D).
Rebated ARAB Spinning reduces length by approx. 20mm

B - (Width) Measurement taken at widest point of filter lid spinning.
Do not measure from screw to screw.

C - Inlet (Dirty air in) measurement taken as internal diameter.
See table for duct sizing guide.

D - Outlet (Clean air out) measurement taken as external diameter, and relates to ARAB spinning used.

All dimensions are in (mm)

 Part No. A (Length) B (Width) C (Inlet) D (Outlet)
ARAB54/57R 270.50 147.20 73.40 60.00
ARAB54/67 296.00 147.20 73.40 70.00
ARAB54/67R 270 147.20 73.40 70.00
