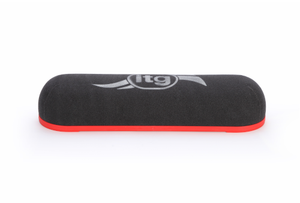

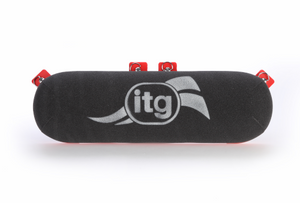

JC55 Big Twin Carburettor Sausage Filter
Part Number: JC55/S
Primarily used on Ford V8 and IDA engines. The JC55 is a slightly longer version of our JC50 Megaflow Filter.
Measurements
A - (Internal Height mm) Distance from face of baseplate and the inside face of the filter
B - (Width mm) External width of the filter not including the lug
C - (Length mm) External length of the filter.
D - (Overall Height mm) Overall external height of the filter
Part No. | A (Internal Height) | B (Width) | C (Length) | D (Overall Height) |
---|---|---|---|---|
JC55/S/40 | 40 | 148 | 500 | 65 |
JC55/S/65 | 65 | 148 | 500 | 90 |
JC55/S/100 | 100 | 148 | 500 | 125 |
JC55/S/125 | 125 | 148 | 500 | 150 |
