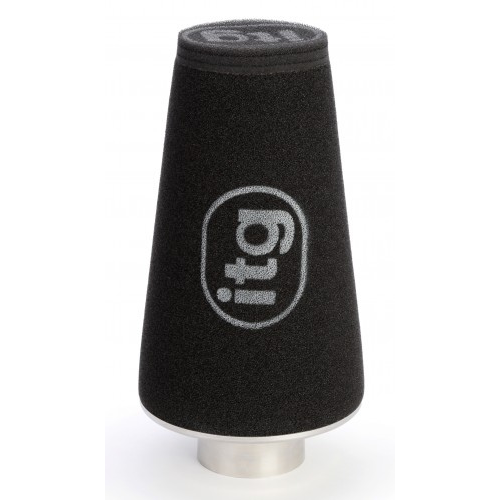

JC60 Mega Maxogen
Part Number: JC60MM
The Mega Maxogen filters are a new addition to the ITG product range. These JC60 filters are built onto our larger 180mm diameter aluminium spinning and also use a reinforced internal plastic cage. These are designed for high power applications where the space is available.
Measurements
A - (Length) Measurement taken from airbox inlet (C), to filter spinning outlet (D). Rebated ARAB Spinning reduces length by approx. 20mm
B - (Width) Measurement taken at widest point of filter lid spinning.
Do not measure from screw to screw.
C - Inlet (Dirty air in) measurement taken as internal diameter.
See table for duct sizing guide.
D - Outlet (Clean air out) measurement taken as external diameter, and relates to ARAB spinning used.
All dimensions are in (mm)
| Part No. | A (ID) / B (OD) | C | D | E | F | G |
|---|---|---|---|---|---|---|
| JC60/80MM | 80 / 83 | 180 | 55 | 290 | 345 | 114 |
| JC60/86MM | 86 / 89 | 180 | 53 | 290 | 343 | 114 |
| JC60/93MM | 93 / 96 | 180 | 50 | 290 | 340 | 114 |
| JC60/99MM | 99 /102 | 180 | 50 | 290 | 340 | 114 |
| JC60/114MM | 114 / 117 | 180 | 45 | 290 | 335 | 114 |
| JC60/124MM | 124 / 127 | 180 | 40 | 290 | 330 | 114 |
