JC60C (Large Cone)
Part Number: JC60CL

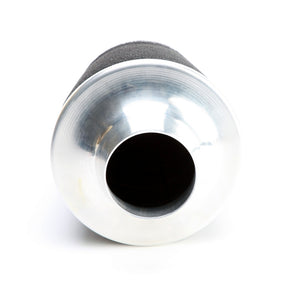

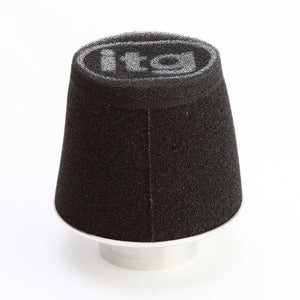

These JC60 filters are built onto our larger 180mm diameter aluminium spinning. These filters use our large plastic filter support cage in and have a total foam height of 163mm. We would recommend this style of filter for forced induction applications.
Measurements
Please see below list of availble sizes for this filter range.
All dimensions are in (mm)
| Part No. | A (ID) / B (OD) | C | D | E | F | G | BHP |
|---|---|---|---|---|---|---|---|
| JC60/80C | 80 / 83 | 180 | 55 | 163 | 218 | 149 | 450 |
| JC60/86C | 86 / 89 | 180 | 53 | 163 | 216 | 149 | 480 |
| JC60/93C | 93 / 96 | 180 | 50 | 163 | 213 | 149 | 500 |
| JC60/99C | 99 /102 | 180 | 50 | 163 | 213 | 149 | 520 |
| JC60/114C | 114 / 117 | 180 | 45 | 163 | 208 | 149 | 530 |
| JC60/124C | 124 / 127 | 180 | 40 | 163 | 203 | 149 | 540 |
