Part Number: STAB76

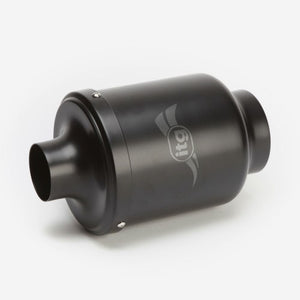

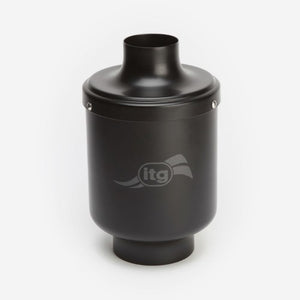

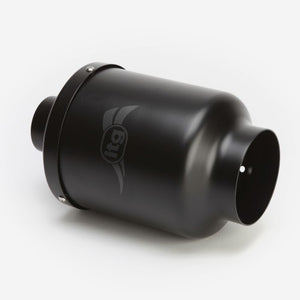

This 'stubby' air box is a great compromise between packaging and getting a reasonable sized filter into an application. We have developed many successful kits around this air box as it is so compact and easy to find somewhere in an engine bay to locate it. Getting cold air to it is often the more difficult packaging issue but 76mm inlet ducting is very flexible and user friendly. This air box also benefits from using our JC60FC filter so is suitable for forced induction applications.
A - (Length) Measurement taken from airbox inlet (C), to filter spinning outlet (D). Rebated ARAB Spinning reduces length by approx. 20mm
B - (Width) Measurement taken at widest point of filter lid spinning.
Do not measure from screw to screw.
C - Inlet (Dirty air in) measurement taken as internal diameter.
See table for duct sizing guide.
D - Outlet (Clean air out) measurement taken as external diameter, and relates to ARAB spinning used.
All dimensions are in (mm)
|Part No.||A (Length)||B (Width)||C (Inlet)||D (Outlet)|
