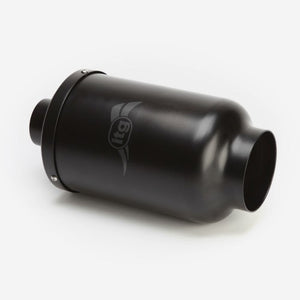

STAB99XL Airbox
Part Number: STAB99XL
This air box is a longer version of the STAB99. If you have a heavily modified forced induction engine and you can't fit one of the larger diameter STAB122 air boxes then this is your answer. It uses an extended length coned shaped filter which increases both air flow and dust retention.
Measurements
A - (Length) Measurement taken from airbox inlet (C), to filter spinning outlet (D). Rebated ARAB Spinning reduces length by approx. 20mm
B - (Width) Measurement taken at widest point of filter lid spinning.
Do not measure from screw to screw.
C - Inlet (Dirty air in) measurement taken as internal diameter.
See table for duct sizing guide.
D - Outlet (Clean air out) measurement taken as external diameter, and relates to ARAB spinning used.
All dimensions are in (mm)
Part No. | A (Length) | B (Width) | C (Inlet) | D (Outlet) |
---|---|---|---|---|
STAB99XL/58 | 295.00 | 164.00 | 99.00 | 61.00 |
STAB99XL/60 | 316.00 | 164.00 | 99.00 | 63.00 |
STAB99XL/63 | 314.00 | 164.00 | 99.00 | 66.00 |
STAB99XL/63 | 314.00 | 164.00 | 99.00 | 66.00 |
STAB99XL/67 | 316.00 | 164.00 | 99.00 | 70.00 |
STAB99XL/67R | 289.00 | 164.00 | 99.00 | 70.00 |
STAB99XL/70 | 318.00 | 164.00 | 99.00 | 73.00 |
STAB99XL/73 | 314.00 | 164.00 | 99.00 | 76.00 |
STAB99XL/73R | 288.00 | 164.00 | 99.00 | 76.00 |
STAB99XL/78 | 307.00 | 164.00 | 99.00 | 81.00 |
STAB99XL/84 | 309.00 | 164.00 | 99.00 | 87.00 |
